LINEAR CEILING SYSTEMS

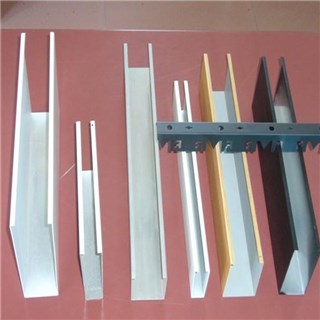

U-Shaped Aluminum Baffles
Roll-formed U-shaped aluminum ceiling baffles in 0.4–1.5 mm coil thickness. Custom widths, heights, lengths and finishes for architectural projects.
20–300 mmBottom / opening width
20–200 mmProfile height
0.4–1.5 mmCoil thickness
Manufacturer specifications · custom widths, heights and cut lengths to your drawings.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / INSTALLATION

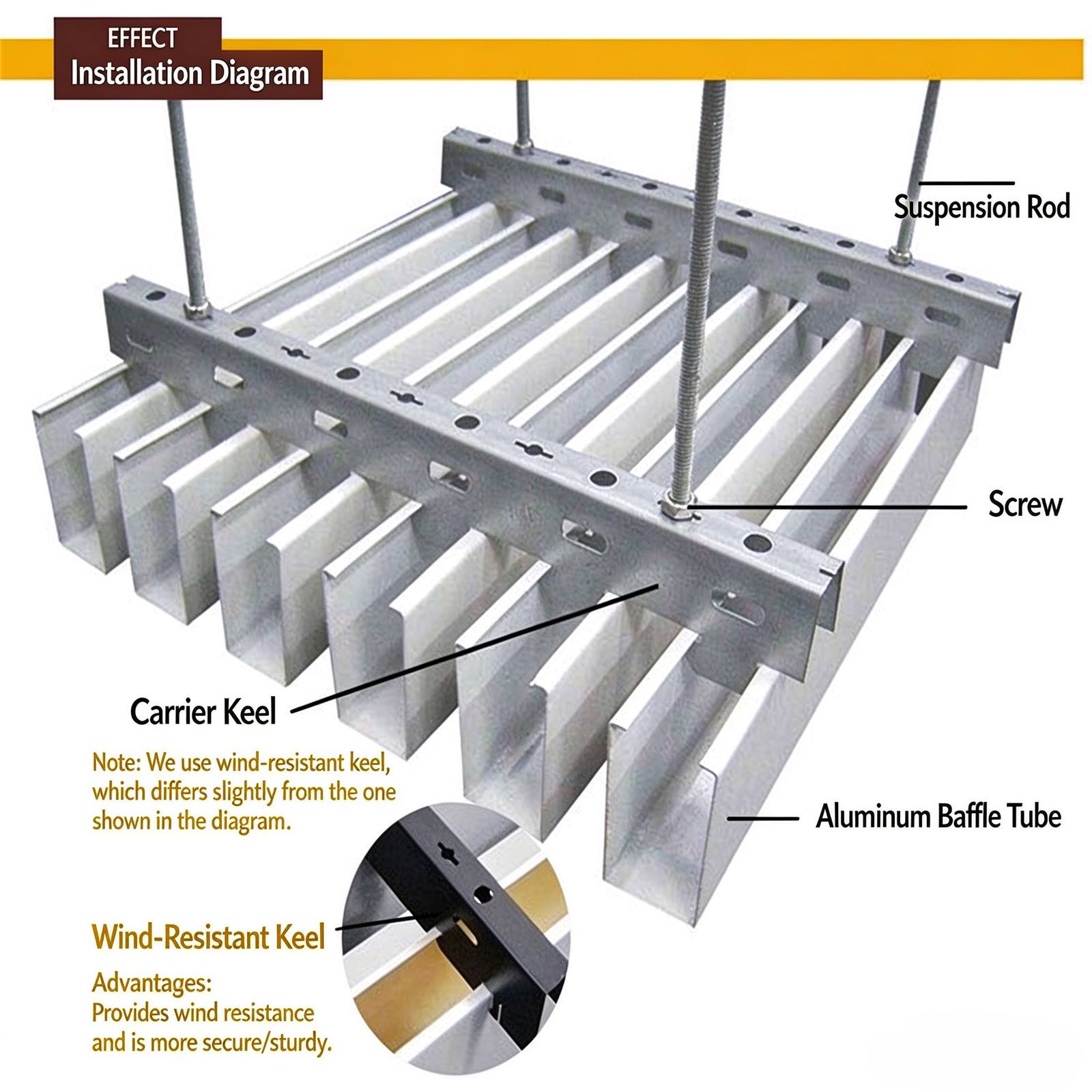

Installation Diagram
U-shaped aluminum baffles, also known as U-shaped aluminum grilles, are continuously roll-formed from aluminum coil through multiple sets of rollers. The profile is formed progressively into a U-shaped cross-section using material 0.4–1.5 mm thick. Continuous production delivers consistent dimensions and is well suited to large-volume architectural orders.
Bottom widths from 20–300 mm and profile heights from 20–200 mm can be customized to your drawings, with lengths cut to order. Surface options include electrostatic powder coating, PVDF fluorocarbon coating, heat-transfer woodgrain and polyester coil coating. The clean, open structure allows ventilation and can be incorporated into acoustic ceiling systems. Moisture-resistant construction and durable finishes support weathering and aging resistance; acoustic and fire performance are coordinated with the complete installation system.
Clip-in installation makes assembly, removal and ongoing maintenance straightforward. Typical applications include ceilings in airports, metro stations, shopping malls, hotels and office buildings, as well as interior and exterior facade screens and partitions. OEM/ODM production is available, with specifications and colors tailored to architectural drawings.
01
Continuous roll-forming
Stable dimensions and efficient production for large-volume project orders.
02
Clip-in installation
Easy assembly, removal and access for ongoing maintenance.
03
OEM / ODM customization
Widths, heights, lengths and colors coordinated with your architectural drawings.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product name | U-shaped aluminum baffles / U-shaped hanging blades / U-shaped aluminum grilles |
| Manufacturing process | Continuous multi-stage roll-forming from aluminum coil; not folded from individual sheets or made as extruded profiles |
| Base alloy | AA1100 / AA3003 aluminum alloy |
| Coil thickness | 0.4–1.5 mm |
| Bottom / opening width | 20–300 mm; customizable |
| Profile height | 20–200 mm; customizable |
| Length | Custom lengths; cut to the specified size |
| Surface treatments | Powder coating / PVDF fluorocarbon spray coating / polyester coil coating / heat-transfer woodgrain. Standard colors and PANTONE / RAL custom matching; woodgrain and stone-effect finishes available. |
| Fire classification | Class A — non-combustible (manufacturer specification) |
| Installation | Clip-in suspension with matching carrier rails |
| Dimensional tolerance | ±1 mm |
Specifications supplied by the manufacturer. Custom dimensions, finish and installation details are confirmed in the approved drawings and quotation. The Class A fire classification is manufacturer-provided; the applicable test standard and report are confirmed for the selected product and finish.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.

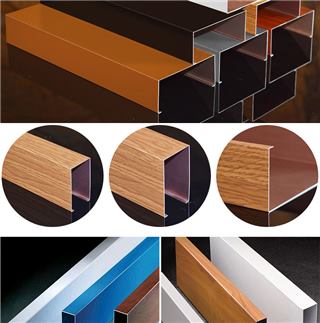

PVDF fluorocarbon coating
Spray-applied PVDF finishes in standard or custom architectural colors.
Polyester coil coating
Roll-coated polyester finishes on aluminum coil, with standard and custom color options.

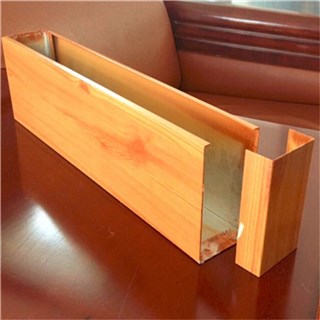

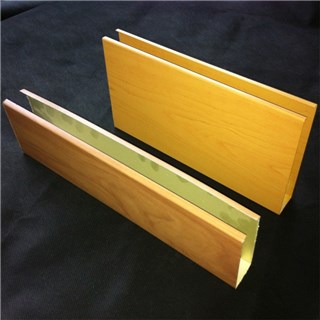

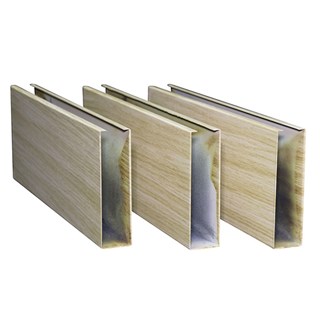

Heat-transfer woodgrain
Decorative woodgrain finishes; grain pattern and tone to an approved sample.
Standard colors available. PANTONE / RAL custom color matching supported. Woodgrain and stone-effect finishes are optional. Approve a physical sample for the final color, texture and sheen; screen swatches are illustrative.
04 / WHERE IT WORKS
Designed for real architectural needs.

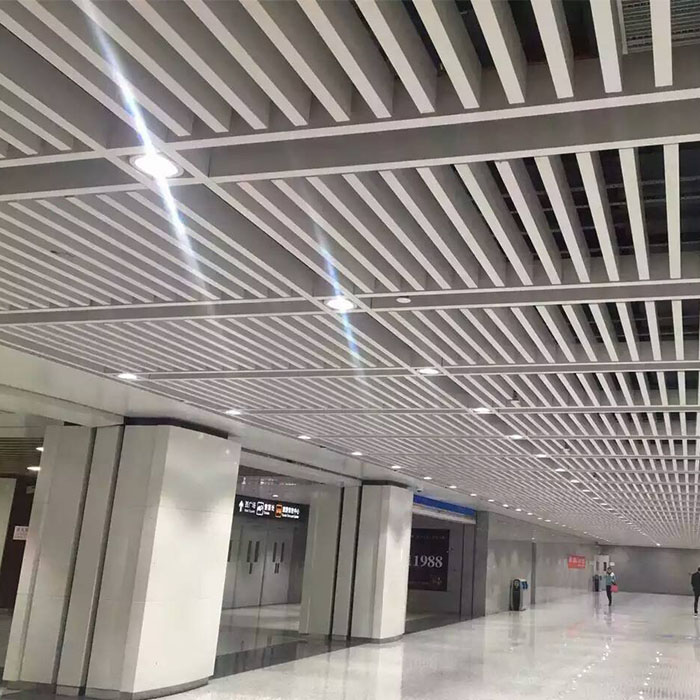

Transit interiors

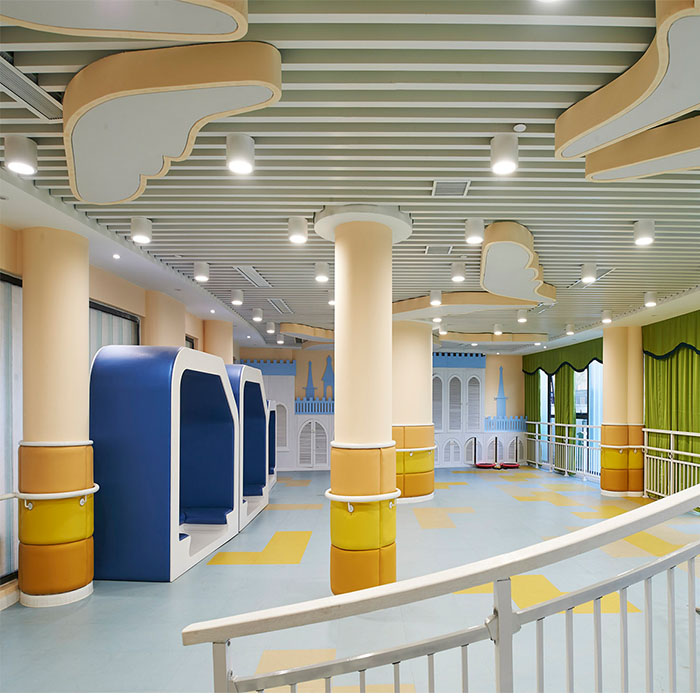

Education spaces

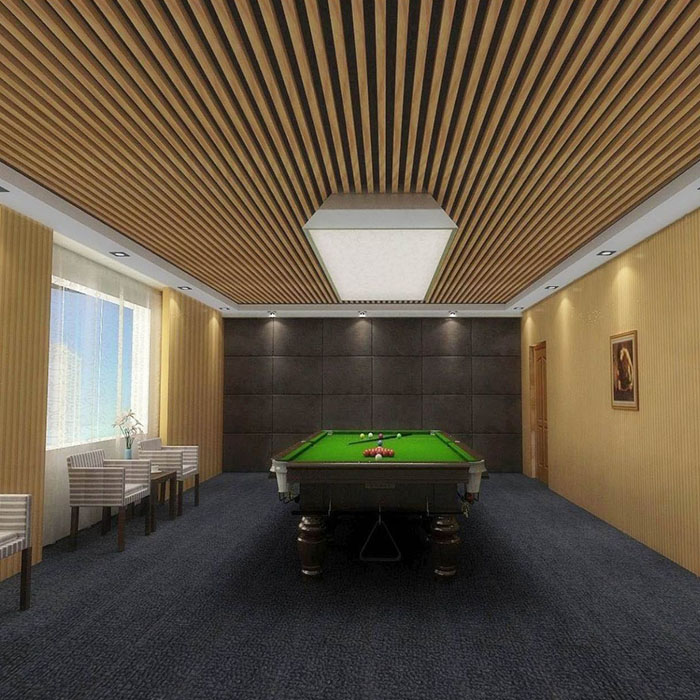

Leisure interiors

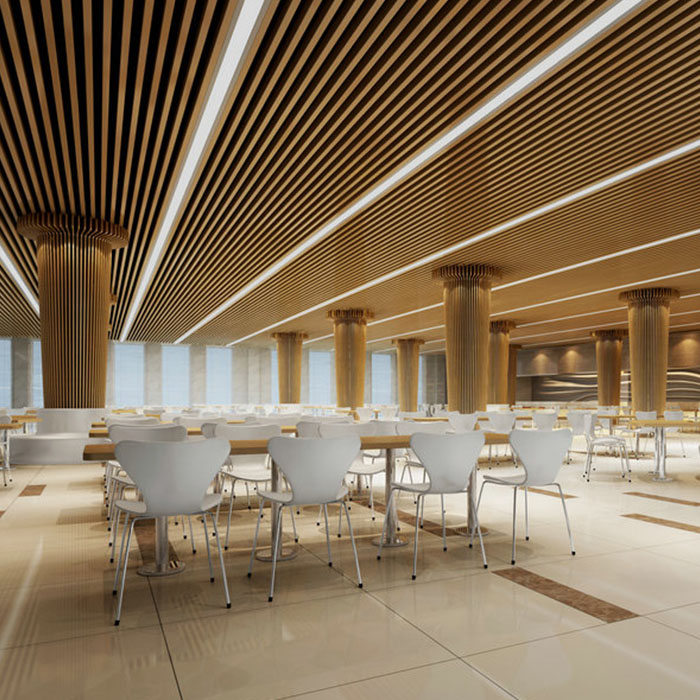

Dining spaces
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
Do you supply the suspension system?
Ask for a coordinated baffle and carrier package in your inquiry. The rail, hanger spacing, end treatment and fixing components must be defined for the project.
What information is needed for a ceiling quotation?
Send the reflected ceiling plan, ceiling area, face width, profile depth, centers or clear spacing, lengths, finish and destination.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
LET’S BUILD THE DETAILS
Your drawing.
Our next conversation.
Tell us what you are specifying. We will review the product, finish and supply requirements with you.
[email protected] WhatsApp +86 133 2165 1321Foshan Dingchuang Aluminum Manufacturing Base
Xingcong 2nd Road, Nanhai District, Foshan, Guangdong, China
